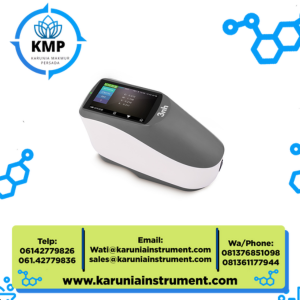

3NH Spectrodensitometer YD5010

3NH Spectrodensitometer YD5010

The 3NH Spectrodensitometer YD5010 is a reliable and common spectrophotometer densitometer designed for precise color measurement and quality control. It is widely applied in ink printing, film processing, textile printing and dyeing, plastic electronics, and other industries. The device excels in the measurement and quality control of optical density and dot enlargement in ink printing processes. It offers customizable measurement apertures of Φ2mm, Φ4mm, and Φ8mm to suit different application needs.

Features

1. Common spectrophotometer densitometer suitable for multiple industries including printing and textiles
2. Customizable single measurement aperture: Φ2mm, Φ4mm, and Φ8mm
3. Combined LED and UV light source for accurate color detection
4. Uses a 256 Image Element Double Array CMOS Image Sensor for precise data capture
5. Complies with ISO 13655 measurement conditions (M0, M1, M2, M3)
6. Measures key density indexes including density value, dot area, dot enlargement, overprint, and printing characteristics

Application

• Ink printing quality control and optical density measurement
• Film processing and color consistency verification
• Textile printing and dyeing process monitoring
• Plastic electronics color measurement
• Quality assurance in printing contrast, tone error, and gray levels
• Control and verification of dot enlargement in printing

Specification

• Light Source: Combined LED Light and UV Light
• Spectral Separation Device: Concave Grating
• Detector: 256 Image Element Double Array CMOS Image Sensor
• Wavelength Range: 400~700 nm
• Wavelength Pitch: 10 nm
• Half Bandwidth: 10 nm
• Measurement Conditions: ISO 13655 (M0, M1, M2, M3)
• Density Standards: ISO Status A, E, I, T
• Measurement Aperture: Customizable Φ2mm, Φ4mm, Φ8mm
• Color Spaces: CIE LAB, XYZ, Yxy, LCh
• Color Difference Formula: ΔEab, ΔE94, ΔE*00
• Observer Angle: 2°/10°
• Illuminants: A, C, D50, D55, D65, D75, F2, F7, F11, F12
• Measurement Time: Approximately 1.5 seconds
• Repeatability:
  • Density: Within 0.01 D
  • Chromaticity Value: Within ΔE*ab 0.04 (white calibration plate, 30 times at 5-second intervals, except M3)
• Inter-instrument Error: Within ΔE*ab 0.2 (average for 12 BCRA Series II color tiles, except M3)
• Measurement Mode: Single Measurement, Average Measurement (2–99 times)
• Size (LWH): 184 x 77 x 105 mm
• Weight: About 600 g
• Power Source: Li-ion battery, supports 5000 measurements within 8 hours of use
