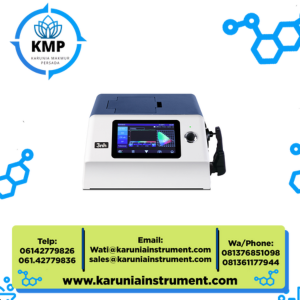

3NH TS8216 Benchtop Spectrophotometer

3NH TS8216 Benchtop Spectrophotometer

The 3NH TS8216 Benchtop Spectrophotometer is a high-precision, lab-grade instrument designed for the color measurement of small-area reflective samples and small-volume transmission samples. Built with advanced optics and an imaging sensor system, it ensures accurate spectral and colorimetric analysis for strict quality control in scientific, industrial, and regulatory applications. Its flexibility in both reflectance and transmittance measurement modes makes it ideal for R&D, color formulation, and standard compliance testing.

Features

1. Adopts a concave grating spectrophotometric system with a double-array CMOS image sensor (256 elements) for high-resolution spectral detection.

2. Equipped with multiple apertures for both reflective (Φ0.3mm/0.5mm/1mm) and transmissive (Φ4mm/8mm) samples, ensuring precise results for micro samples.

3. Supports both SCI and SCE modes for reflection and transmission, delivering comprehensive color evaluations.

4. Large Φ154mm integrating sphere enables stable and uniform light distribution for consistent color measurement.

5. Built-in customizable LED light sources, including 400nm and 420nm cut-off options, to analyze standard and fluorescent materials.

6. Fast measuring time of 2.4 seconds, or 5 seconds for dual SCI/SCE measurement, suitable for batch and high-throughput testing.

Applications

1. Ideal for color control of micro-reflective surfaces in electronics, coated films, metal foils, and medical materials.

2. Used in pharmaceutical quality assurance for transparent liquid color measurement based on Chinese Pharmacopoeia and ASTM standards.

3. Essential in cosmetics and packaging industries for reflective and transmissive color verification.

4. Applied in chemical manufacturing for evaluating APHA/Hazen, Gardner, and Saybolt indices.

5. Ensures color consistency in food, beverage, and plastic products with small-sized transparent containers or samples.

6. Used in research and standardization laboratories for precise transmission and reflectance spectroanalysis.

Specifications

1. Wavelength range: 360–780 nm; interval: 10 nm; semi-bandwidth: 5 nm.

2. Measuring apertures:

   • Reflectance: Φ0.3mm, Φ0.5mm, or Φ1mm (selectable)

   • Transmittance: Φ4mm or Φ8mm (selectable)

3. Repeatability:

   • Reflectance (Φ1mm/SCI): ΔE*ab ≤ 0.15; Std. dev. of spectral reflectance ≤ 0.08%

   • Transmittance (Φ8mm/SCI): ΔE*ab ≤ 0.18; Std. dev. of spectral transmittance ≤ 0.1%

4. Inter-instrument error: Within ΔE*ab 0.25 (based on 12 BCRA Series II tiles).

5. Light source options: Combined LED, 400nm and 420nm cut-off sources, spanning 360–780nm.

6. Dimensions & weight: 370×300×200 mm; approx. 9.6 kg.

Physical & Power Details

1. Dimensions: 370 × 300 × 200 mm — optimized for benchtop workspace in labs and QC rooms.

2. Weight: approximately 9.6 kg — stable for precision and vibration-free operation.

3. Power source: AC 24V, 3A, via external power adapter — safe and reliable for continuous use.

4. Durable construction ensures long-term performance and low maintenance.

5. Designed for easy calibration with automated workflows and white tile reference.

6. Compatible with PC software for enhanced functionality, data logging, and regulatory reporting.
