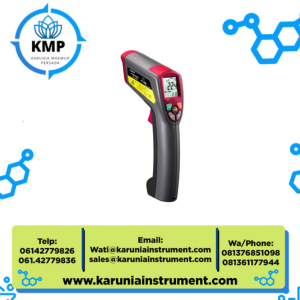

Infrared Thermometer SK-8300 SK SATO

Infrared Thermometer SK-8300 – SK SATO

Product Description

The SK-8300 Infrared Thermometer by SK SATO is a professional-grade, non-contact temperature measuring device designed for demanding industrial and high-temperature applications. Featuring a broad measurement range from −30°C to 1550°C, a high distance-to-spot ratio (D:S) of 50:1, and an adjustable emissivity setting, the SK-8300 ensures precise and efficient surface temperature readings even from a significant distance. Its robust design, fast response time, and laser targeting make it an ideal choice for heavy-duty environments where safety, accuracy, and speed are essential.

Features

1. Wide temperature measurement range from −30°C to 1550°C for extreme heat monitoring

2. High D:S ratio of 50:1 allows accurate measurement from a safe distance

3. Adjustable emissivity (0.10 to 1.00) for better accuracy on different surface materials

4. Red laser marker with single-point targeting enhances aiming precision

5. Quick response time of 0.5 seconds ensures real-time data acquisition

6. Supplied with hard case and alkaline battery, ready for industrial field use

Application

• Industrial furnace and kiln inspections

• Foundry and metal processing temperature checks

• Manufacturing and production line quality control

• High-temperature equipment monitoring in power plants

• Safety inspections in fire prevention and hazard zones

• Research and development requiring precise surface temperature analysis

Specifications

• Model: SK-8300

• Measuring range: −30 to 1550°C

• Accuracy:

  • ±3°C (−30.0 to −20.1°C)

  • ±2°C (−20.0 to 100.0°C)

  • ±2%rdg (other ranges)

• Resolution: 0.1°C

• Repeatability: ±0.1°C

• Response time: 0.5 seconds (90% response)

• Emissivity: Adjustable from 0.10 to 1.00 in 0.01 steps

• Distance coefficient: D:S = 50:1

• Detector: Thermopile

• Measured wavelength: 8 to 14 μm

• Laser marker: Single-point, 650 nm, <1 mW output (PSC Class II certified)

• Operating conditions: 0 to 50°C, <85% RH (non-condensing)

• Power: 9-volt battery (006P)

• Battery life: Approx. 8 hours (laser and backlight on)

• Material:

  • Main body: ABS resin

  • Lens: Silicon (Si)

• Dimensions: 51 (W) x 200 (H) x 166 (D) mm

• Weight: 280 g (including battery)

• Standard accessories: Hand strap, hard case, 9V alkaline battery, instruction manual

Conclusion

The SK-8300 Infrared Thermometer from SK SATO is a high-performance tool tailored for challenging industrial environments requiring long-range and high-temperature measurement. Its wide measuring range, precision optics, fast response time, and ergonomic design make it a dependable solution for engineers, inspectors, and maintenance professionals working in extreme heat conditions. Whether used in metal processing or heavy equipment monitoring, the SK-8300 delivers accurate, contactless results with confidence.
