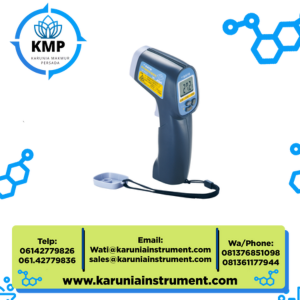

Infrared Thermometer SK-8900 SK SATO

Infrared Thermometer SK-8900 – SK SATO

Product Description

The SK-8900 Infrared Thermometer by SK SATO is a precision, non-contact temperature measuring device ideal for industrial, laboratory, and food safety applications. Designed with a broad measurement range of −40 to 450°C, it features selectable emissivity and a built-in laser marker for accurate targeting. With a compact design and easy operation, it ensures quick and safe surface temperature readings without direct contact.

Features

1. Wide temperature range
   Measures from −40 to 450°C, suitable for various environments including cold storage, hot surfaces, and industrial equipment.

2. High accuracy and resolution
   Offers ±3°C accuracy at low temperatures and ±2% or ±2°C at standard ranges, with resolution down to 0.1°C for temperatures below 100°C.

3. Adjustable emissivity
   Selectable settings (0.85, 0.90, 0.95) allow for precise calibration depending on the surface material being measured.

4. Integrated laser marker
   Built-in laser pointer (650 nm) helps users target measurement areas precisely, enhancing accuracy and usability.

5. Energy efficient operation
   Long battery life depending on laser/backlight usage—up to 50 hours when both are off.

6. Durable and portable
   Made with durable ABS resin and compact in size, making it easy to carry and operate in various field environments.

Applications

• Surface temperature checks in industrial machinery

• Monitoring temperature in food processing and safety control

• Laboratory and environmental testing

• HVAC system diagnostics

• Automotive component heat analysis

• Electrical and equipment maintenance

Specifications

Model name: SK-8900
Catalog number: 8263-00

Measuring range:
−40 to 450°C

Accuracy:
±3°C (−40 to −20°C)
±2%rdg or ±2°C, whichever is larger (−20 to 400°C)
±2.5%rdg (400 to 450°C)

Resolution:
0.1°C (below 100°C), 1°C (100°C and above)

Emissivity:
Selectable: 0.85, 0.90, 0.95

Distance coefficient:
D:S = 10:1 (distance:spot diameter)

Detector: Thermopile
Wavelength range: 8 to 14 μm

Laser marker:
Wavelength: 650 nm
Output: <1 mW
PSC-certified as Class II laser device (Japan)

Operating conditions:
Temperature: 0 to 50°C
Humidity: <80% RH (non-condensing)

Power:
One 9V battery
Consumption: 37 mA max (laser and backlight on)
Battery life:
– 5 hours (laser + backlight)
– 8 hours (laser only)
– 20 hours (backlight only)
– 50 hours (both off)

Materials:
Main body: ABS resin
Lens cap: Polypropylene resin

Dimensions: 46 (W) x 160 (H) x 75 (D) mm
Weight: 157 g (with battery)

Standard accessories:
1x Hand strap with lens cap
1x Vinyl cover
1x Vinyl pouch
1x 9V zinc-carbon battery
1x Instruction manual

Conclusion

The SK-8900 Infrared Thermometer by SK SATO is a reliable, easy-to-use instrument for non-contact temperature measurement. With a wide temperature range, selectable emissivity, and laser-guided targeting, it provides fast, safe, and accurate readings in diverse settings. This tool is essential for professionals in industrial maintenance, food safety, and environmental monitoring.
