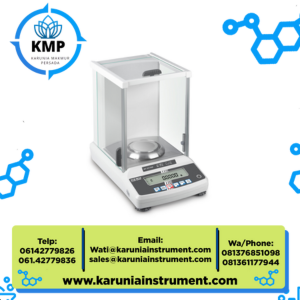

KERN Analytical balance ABT 220-4NM

KERN Analytical Balance ABT 220-4NM

The KERN ABT 220-4NM is a high-performance analytical balance designed for precise laboratory weighing tasks. With a maximum capacity of 220 g and a readability of 0.0001 g, it is engineered for fast, reliable, and highly accurate results. The model features a robust metal housing, glass draught shield, and fully automatic internal calibration for superior stability and convenience in demanding environments.

Features

1. High-resolution readability of 0.0001 g for precise weighing of small samples

2. Internal automatic calibration ensures continuous measurement accuracy

3. Durable metal housing and stainless steel weighing plate provide long-lasting performance

4. Fast stabilization time of 4 seconds for efficient workflow

5. RS-232 interface allows easy connection to external devices or data systems

6. Protective glass draught shield minimizes environmental interference

Applications

1. Analytical laboratories for chemical and pharmaceutical measurements

2. Educational institutions for teaching precision weighing techniques

3. Quality control processes in industrial and production environments

4. Food and cosmetic testing requiring high-accuracy weight data

5. Precious metals and gemstone weighing in material labs

6. Environmental research and sample preparation labs

Specifications

• Weighing capacity (Max): 220 g

• Readability (d): 0.0001 g

• Verification scale interval (e): 0.001 g

• Minimum weight (Min): 0.01 g

• Linearity: ± 0.0002 g

• Reproducibility: 0.0001 g

• Stabilization time: 4 s

• Adjustment options: Internal automatic calibration, manual internal weight adjustment

• Ambient temperature: 10 °C to 30 °C

• Weighing surface diameter: 80 mm

• Interfaces: RS-232 standard

• Draught shield material: Glass

• Housing material: Metal

• Weighing plate material: Stainless steel

• Dimensions (W×D×H): 217 × 345 × 330 mm

• Net weight: Approx. 8 kg
