Memmert Steriliser S SF160plus

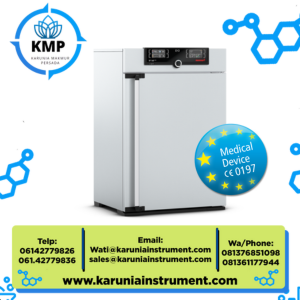

Memmert Steriliser SF160plus

Advanced Hot Air Steriliser for Medical and Laboratory Use

The Memmert SF160plus is a high-performance hot air steriliser designed for precise, reliable sterilisation of instruments in laboratories and medical environments. It offers true sterilisation (not just disinfection) and meets the stringent CE 0197 standards for medical devices. Equipped with TwinDISPLAY, HeatBALANCE, and SetpointWAIT technology, it ensures consistent temperature control and safety across every cycle.

Features

• Large 161-liter capacity for high-volume sterilisation

• TwinDISPLAY control with dual TFT color screens for intuitive operation

• SetpointWAIT ensures the cycle starts only after all sensor points reach the set temperature

• HeatBALANCE for even distribution of heat between top and bottom heating elements

• Adjustable fan speed and air flap position for process optimization

• AtmoCONTROL software (USB included) for easy programming and data logging

• Electropolished stainless steel shelves and hygienic chamber design

• Reliable fault detection system with visual and acoustic alarms

• Fully insulated stainless steel door with secure 2-point compression lock

Applications

• Sterilisation of medical tools, surgical instruments, laboratory glassware, and metal components

• Ideal for use in hospitals, research facilities, pharmaceutical labs, and biotechnology industries

• Perfect for applications where validated, reproducible hot air sterilisation is required

Specifications

• Temperature setting range: +20 °C to +250 °C

• Temperature accuracy:

  • Up to 99.9 °C: ±0.1 °C

  • From 100 °C: ±0.5 °C

• Working temperature: At least 10 °C above ambient up to 250 °C

• Sensors: 2 Pt100 sensors DIN Class A, 4-wire circuit, with mutual monitoring

• Control system:

  • TwinDISPLAY with digital PID microprocessor

  • Timer: 1 minute to 99 days

  • HeatBALANCE to balance heating circuits (-50% to +50%)

  • SetpointWAIT function for precise start timing

  • Adjustable parameters: temperature (°C/°F), fan speed, air flap, programme time, time zones

• Ventilation:

  • Forced air via quiet turbine, adjustable in 10% steps per segment

  • Electronically adjustable pre-heated fresh air intake

  • Exhaust vent with restrictor flap

• Communication and documentation:

  • Power failure recovery

  • AtmoCONTROL software via USB stick and Ethernet

• Safety features:

  • Mechanical overtemperature limiter TB (DIN 12880 Class 1)

  • Overtemperature monitor TWW (Class 3.1) or TWB (Class 2), selectable

  • AutoSAFETY function with automatic tolerance monitoring

  • Autodiagnostic system for fault detection

  • Visual and acoustic alarms

• Standard equipment:

  • Calibration certificate at +160 °C

  • 2 electropolished stainless steel shelves

  • Stainless steel door with 2-point lock

• Interior specifications:

  • Internal dimensions: 560 x 720 x 400 mm (depth reduced by 39 mm for fan)

  • Volume: 161 liters

  • Max number of shelves: 8

  • Max load capacity: 210 kg

  • Max load per shelf: 20 kg

  • Interior: Stainless steel, ribbed, heated on four sides, easy to clean

• Exterior specifications:

  • External dimensions: 745 x 1104 x 584 mm (plus 56 mm for door handle)

  • Casing: Textured stainless steel

  • Rear panel: Zinc-plated steel

• Electrical data:

  • 230 V, 50/60 Hz, approx. 3200 W

  • 115 V, 50/60 Hz, approx. 1800 W

• Installation and environmental requirements:

  • Rear clearance: Minimum 15 cm

  • Ceiling clearance: Minimum 20 cm

  • Side clearance: Minimum 5 cm

  • Maximum altitude: 2000 m

  • Ambient temperature: +5 °C to +40 °C

  • Max humidity: 80%, non-condensing

  • Overvoltage category: II

  • Pollution degree: 2
